Product Details:
|
| Capacity: | 600,000~750,000 Tons Annually | Raw Material: | Hot Rolling Carbon Structure Steel, High Qulity Carbon Structure Steel And Low Alloy Steel Coil, Silicon Steel |
|---|---|---|---|
| Thickness Of Steel Strip: | 2.0~6.0mm | Width Of Steel Strip: | 700~1,550mm |
| Processing Speed: | 30~180m/min | Coil Weight: | Max.25tons |
| Technology: | Continuous Acid Pickling | Energy: | Water, Electricity, Steam |
| Highlight: | Cpl Continuous Pickling Line,Continuous Pickling Line 30m/Min,Continuous Pickling Solution |
||
Innovative continuous pickling line
pickling solution with pay off reel, bridle roll, pinch roll
Beijing JJRS Technology Development Co., Ltd. registered in national high tech park-Beijing Economic and Technological Development Zone, is high-tech enterprise specialized in the complete set of metallurgical equipments, intensive processing of steel strip and metal surface coating engineering project, with the integration of mechanism, optics, electric and hydraulic pressure.
JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.

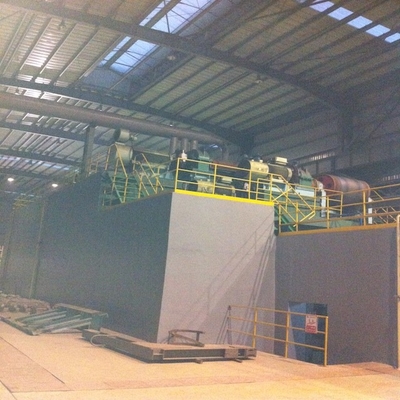

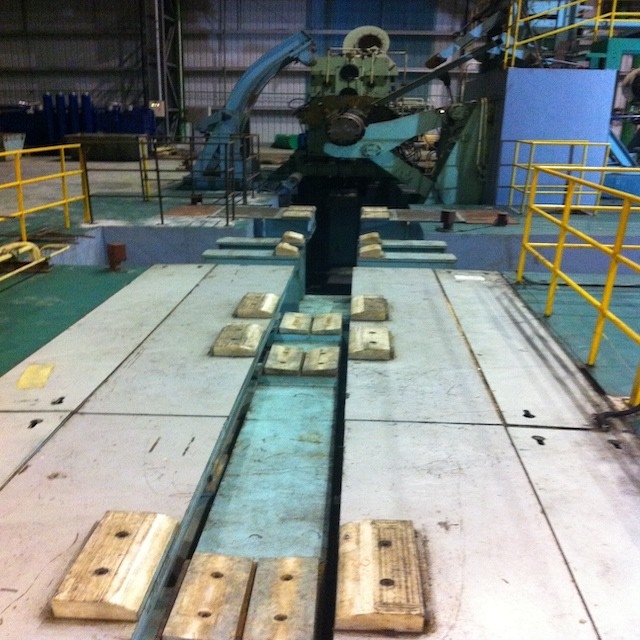

This line is a hot rolled strip steel pickling line with annual capacity of 1800000T /a. The line has the functions of scale breaking, pickling, rinsing, edge blowing, drying, acid mist purification and so on. According to function and strip processing sequence, the line can be divided into entry section, process section and exit section. The entry section mainly includes uncoiling, shearing and welding processes, providing continuous operation conditions for the process section; The process section mainly includes scale breaking, pickling, rinsing, edge blowing, drying, acid mist purification, etc., to complete the rust removal of hot rolled strip steel; Exit section completes the strip edge cutting, broken edge cutting, coiling.
This production line is continuous acid pickling line, which adopts the most advanced Shallow Trough Turbulence Acid Pickling Technology. The equipment and technology are reliable, advanced and mature, which is proved by actual practice and could fulfill buyer’s need of steady production and long-term running. This technology is featured by reasonable structure, high efficiency, low consumption, convenient operation and fewer faults.
Product mix
|
Strip thickness |
Strip width |
Ratio |
Speed |
Hourly output |
Annual output |
Production time |
| mm | mm | % | m/min | t | t | h |
| 2.0 | 900 | 3 | 200 | 169 | 35607 | 210 |
| 2.0 | 1000 | 4 | 200 | 188 | 52752 | 280 |
| 2.0 | 1100 | 3 | 200 | 207 | 43520 | 210 |
| Supplier Firm | JJRS |
| Production Capacity | 180,000ton/year |
| Processed Sheet Thickness Range | 1.5～6.0mm |
| Processed Sheet Width Range | 900~1100mm |
| Line Speed | 200m/min (250m/min) |
| Roller Weight Range | min 10 ton - max 30 ton |
| Acid | Hydrochloric (HCI) |
