Product Details:
|
| Capacity: | 600,000~750,000 Tons Annually | Raw Material: | Hot Rolling Carbon Structure Steel, High Qulity Carbon Structure Steel And Low Alloy Steel Coil, Silicon Steel |
|---|---|---|---|
| Thickness Of Steel Strip: | 1.5~6.0mm | Width Of Steel Strip: | 700~1,550mm |
| Processing Speed: | 30~180m/min | Coil Weight: | Max.25tons |
| Technology: | Continuous Acid Pickling | Energy: | Water, Electricity, Steam |
| Name: | Innovative Continuous Pickling Line With Pay Off Reel, | ||
| Highlight: | annealing and pickling line 1550mm,annealing and pickling line with bridle roll,annealing pickling machine |
||

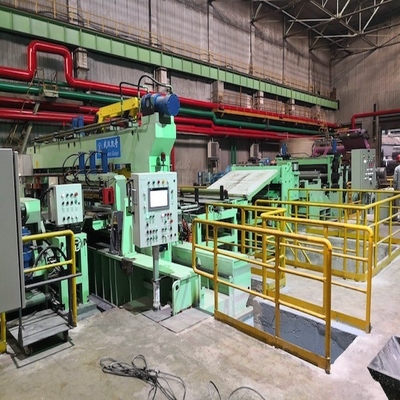

700mm~1550mm Innovative continuous pickling line
with pay off reel, bridle roll, pinch roll
Continuous Acid Pickling Line with vertical guide roller, bridle roll, pinch roll, pay off reel
For continuous acid pickling line, the headand rear parts of two different coils shall be welded together,
both entry andexit of process sections are equipped with accumulators to guarantee acontinuous operation.
Generally when the annual capacity exceeds 700,000 tons,continuous picking line will be adopted.
In continuous lines, the process section runs at a constant speed. Such installations are cost-effective due to simplicity of the accumulator designs.
Process Flow
Main equipments according to processflow in turn are as follows:
Manually loading → entry skid→ coil loading trolley I# &II# →
pay off reel I#&II# → decoiling scraper I# &II# →
5-roller pinch straightener I# &II# → transverse shearerI#&II# →
vertical guide roller → welder → crescentshearer →
pinch roll → entry accumulator → scale breaker →
tension bridle roll →vertical guide roller → acid pickling trough →
washing trough → edge blowingdevice → vertical guide roller →

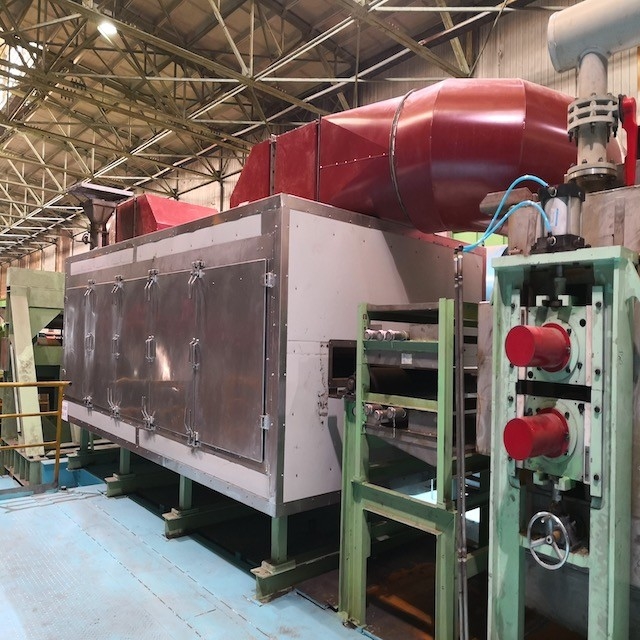

hot air dryer → tension bridle roll → exit accumulator→
tension bridle roll → transverse shearer → exit pinch roll → recoiler (EPC) →
coil unloading trolley → exit skid → manually unloading
Manually loading →entry skid →coil loading trolleyI# &II# →pay off reelI# &II#
→decoiling scraperI# &II# →5-roller pinch straightenerI# &II#
→transverse shearerI# &II# →vertical guide roller →welder → crescent shearer
→pinch roll →entry accumulator →scale breaker →tension bridle roll
→vertical guide roller →acid pickling trough →washing trough
→edge blowing device →vertical guide roller →hot air dryer
→tension bridle roll →exit accumulator →tension bridle roll
→transverse shearer →exit pinch roll →recoiler (EPC) →
coil unloading trolley → exit skid→manually unloading
Features and Benefits
Robust and efficient design
Reduced reducing pickling time
Turbulent bath and spary pickling
Minimized acid consumption
Salt bath, ESS, mixed acid
Reduced and simplified maintenance
Intelligent chemical control
Uniform heat distribution
Innovative brush system
Intuitive operator interface
| Production Capacity | 400,000 ~600,000ton/year |
| Processed Sheet Thickness Range | 1.5～6.0mm |
| Processed Sheet Width Range | 700~1350mm |
| Line Speed | 100~120m/min (250m/min) |
| Roller Weight Range | min 10 ton - max 30 ton |
| Acid Hydrochloric (HCI) |
