Product Details:
|
| Application: | Building Material, Panel, Roof | Material: | Hot Rolled Coil, Cold Rolled Coil |
|---|---|---|---|
| Width: | 600mm-1250mm | Thickness: | 0.2mm-0.6mm |
| Zinc Coating: | 30-300g/m2 | Name: | Steel Industry Continuous Galvanizing After Hot Rolling With Furnace Gas |
| Keyword: | Steel Continuous Galvanizing Line | Type: | Continuous |
| Process: | Hot Dip | Material: | Steel Metal Ss Cs |
| Componet: | Entry Looper | Capacity: | 300,000t/year |
Steel Industry Continuous Galvanizing After Hot Rolling with blast furnace gas
0.2~0.6mm*600~1250mm (metal ss)

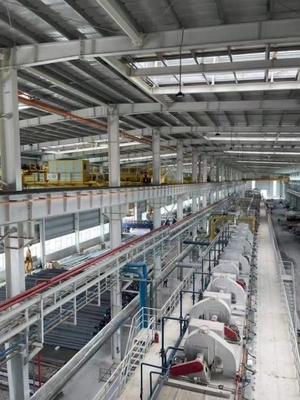

This production line is galvanizing line of cold rolled steel. It mainly includes uncoiling section, welding platform, entry looper, annealing furnace, zinc pot, air knife system, cooling system after galvanizing, tension leveler, passivation section, exit looper, reserve postion for electrostatic oiler and some other equipments. The production line's product position is architectural material, roof, panels, etc. Its function inlcudes annealing, galvanizing, finishing, straighterning, pre-painting oil. etc.
| Raw material | cold rolling steel |
| Steel type | Q195 Q215 Q345 |
| Product grade | CQ DQ |
| Steel strip thickness | 0.2~0.6mm |
| Steel strip width | 600~1250mm |
| Steel strip weight | Max 30t |
| Steel strip inner diameter | Φ508mm Φ610mm |
| Steel strip outer diameter | Φ800mm~Φ2000mm |
We could provide equipment installation instruction, the detailed installation could be done by the user according to the instructions, only charge for the instruction and commissioning.
