Product Details:
|
| Material: | Cold Rolling Coil, Hot Rolling Acid Pickling Coil | Thickness: | 2.0~4.0mm |
|---|---|---|---|
| Width: | 850mm | Annual Output: | 250,000 Ton |
| Type: | Continuous | Coating: | Galvanizing, Painting, Plating, Hot Dip Galvanizing, Zinc Coat |
| Name: | 0.5-2.5mm 525mm Continuous Galvanizing Line High Speed | Production Mode: | Double/single Work Line |
| High Light: | 2.5mm continuous galvanizing line,high speed continuous galvanizing line,525mm cgl continuous galvanizing line |
||

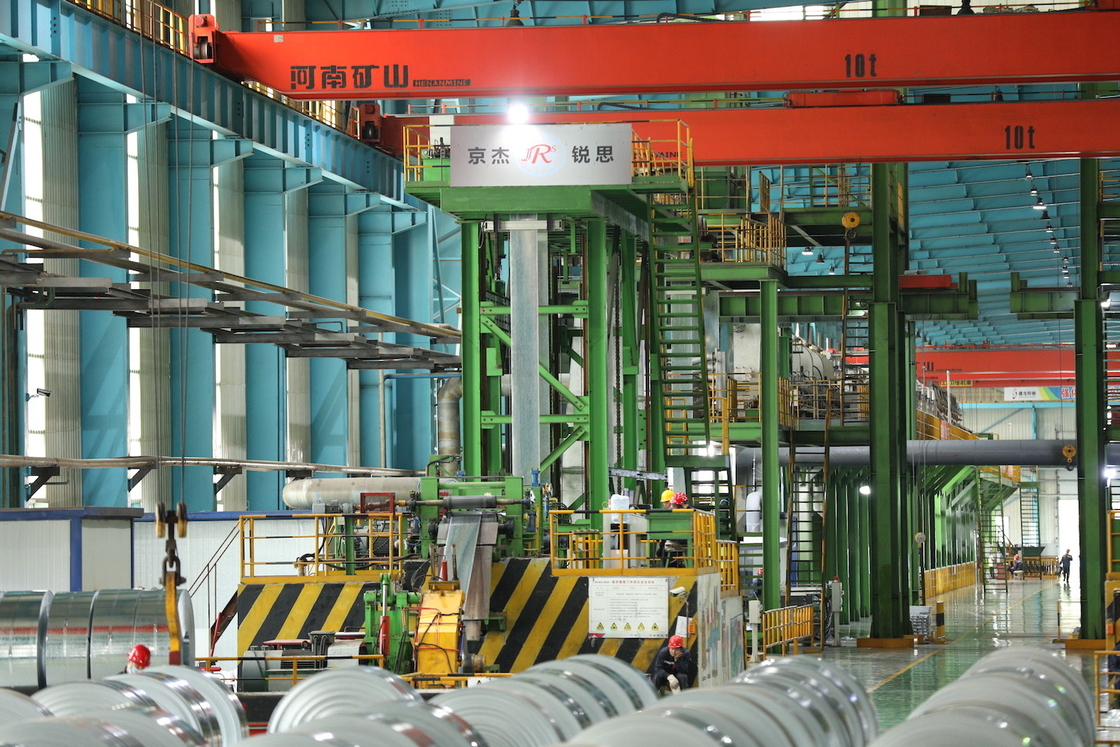

High efficient& lower cost New Material Project 0.5~2.5mm 525mm CGL Galvanizing Unit
JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.
JJRS is leading Exporter, Manufacturer, Supplier of Furnace Manufacturers in China. JJRS is one of verified and trusted sellers of listed products. With their extensive experience of supplying and trading Continuous Annealing Furnace, JJRS has made a reputed name for themselves in the market with high quality Continuous Annealing Furnace etc.
Example
Project Name: New Material Project 0.5~2.5mm 525mm Continuous Hot Dip Galvanizing Unit
Production Status: Designing
Process Speed: 48-120m/min, the Max TV Value is 120mm*m/min
Drive System Power Configuration:AC Frequency Conversion Speed Regulation
Adjustment Range of Zinc Coating Thickness:30-275g/㎡ (Double-sided)
Zinc Coating State: Normal Zinc Spangle
Passivation Method:Roller Coating Passivation
Production Line Direction: From Right to Left, (Viewed from the Operating Side)
| 1 | Project Name: | New Material Project 0.5~2.5mm 525mm Continuous Hot Dip Galvanizing Unit |
| 2 | Production Status: | Designing |
| 3 | Process Speed: | 48-120m/min, the Max TV Value is 120mm*m/min |
| 4 | Looping Filling Speed: | Max 200m/min |
| 5 | Drive System Power Configuration: | AC Frequency Conversion Speed Regulation |
| 6 | Adjustment Range of Zinc Coating Thickness: | 30-275g/㎡ (Double-sided) |
| 7 | Zinc Coating State: | Normal Zinc Spangle |
| 8 | Passivation Method: | Roller Coating Passivation |
| 9 | Production Line Direction: | From Right to Left, (Viewed from the Operating Side) |
The special design features of this system deliver the following advantages:
Lowest dewpoints due to excellent furnace sealing concept and up to 100 % hydrogen process atmosphere to avoid surface oxidation, particularly for the highest-quality grades of electrical steel (> 2.5 % Si) at annealing temperatures > 1000 °C
Material temperatures up to > 1100 °C feasible, especially with highly-efficient power plant grades such as M230-50A (> 3 % Si)
Strip as thin as 0.18 mm can be produced for high-frequency applications.
Resource-saving and tailor-made furnace design to minimize wear part, utility and investment costs
The very latest burner/radiant tube technology and rapid heating-up systems for high heating gradients to achieve efficient decarburization and improved texture (crystalline orientation)
Process simulation before heat treatment makes it possible to identify suitable annealing programs to achieve the specified magnetic and mechanical properties
Hydrogen regeneration units, which provide hydrogen savings of up to 50 %, are available
