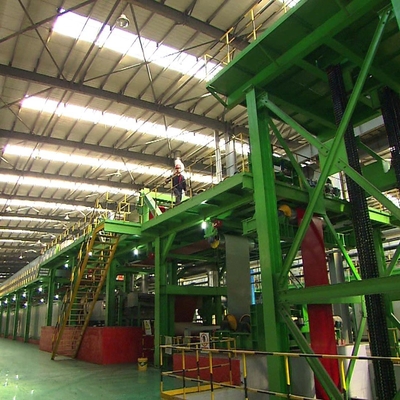

Coil Steel Color Coating Machine Plant 500mm-1250mm 1.0-2.5mm

steel strip color coating line(Coating, laminating, printing, embossing, one coating, two (or three)coating two baking

Excellent Steel Strip Color Coating Line

( Coating, laminating, printing, embossing etc.)

JJRS  “Quality Mission” is an effort to enlighten the customer about cost benefit of adopting right process for continuous improvement in their output through technologically advanced Coil Processing Lines and Equipment.

To maintain manufacturing quality, continuous monitoring and internal quality auditing done by a team of trained professionals with the aid of latest metro-logical digital measuring devices. All instruments are periodically calibrated by India Govt. licensed labs. Documentation is maintained in line with ISO standards.

Design and engineering excellence is backed up by a team of quality assurance professionals and engineers, electronic quality control gadgets and computer systems to measure the effective.

To know more about our stringent quality standards and practices followed at our works, the easiest option for you is to come and spend a day with our Quality Assurance team.

After coil leaves reel of coiler, reel would prepares for next coil.
After the head of the next strip is fed into the coiler and winded several turns, the strip is tensioned. Then tension of strip would be established and coiler would speed up until loop runs out. At last speed of exit section will slow down to normal condition.

Process Flow

Loading trolley I# & II# Uncoiler I# & II# Uncoiler Pinch Roll I# & II# Shear I# & II# Joint Pinch Roll Riveter Flattener Tension Bridle roll I#(S-roller) Entry looper Centering machine I# Tension Bridle roll II# (S-roller) Pre-degreasing Squeezer I# Degreasing Rolling brush machine I# Squeezer II# & III# Washing I# Squeezer IV# Washing II# Squeezer V# Washing III# Squeezer VI# & VII Hot air blowing service I# Centering machine II# Chemical Coating Water vapor drying furnace Forced Air Cooling I# Tension Bridle roll III# (S-roller) Centering machine III# Prime painting roller coater Prime paint leveling Prime paint curing furnace Forced Air Cooling II# Forced water cooling for prime paint Centering machine IV# Hot air blowing service II# Tension Bridle roll IV# (S-roller) Centering machine V# Finish painting roller coater Finish paint leveling Finish paint curing furnace Forced Air Cooling III# Forced water cooling for Finish paint Centering machine VI# Hot air blowing service III# Tension Bridle roll V# (S-rollers) Cold Laminator unit Exit looper Tension Bridle roll VI#(S-roller) Pinch roll shear III# Exit pinch roll Servo coiler(with belt wrapper) Unloading trolley

Part of the parameters
