Automatic Hot Dip Galvanizing Steel Strip Production Line Galvanizer Machine

Large Image : Automatic Hot Dip Galvanizing Steel Strip Production Line Galvanizer Machine

Product Details:

Place of Origin:	China
Brand Name:	JJRS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD$1,000,000~USD10,000,000
Packaging Details:	Wooden box;
Delivery Time:	7-10 months
Payment Terms:	T/T, L/C
Supply Ability:	1-10set/year

Contact Now

Automatic Hot Dip Galvanizing Steel Strip Production Line Galvanizer Machine

Description

Application:	Building Material	Material:	Hot Rolled Coil, Cold Rolled Coil
Width:	650mm-1300mm	Thickness:	0.3mm-2.5mm
Zinc Coating:	30-300g/m2	Name:	Steel Strip Continuous Process Galvanizing Line (metal Ss)
Keyword:	Good Continuous Galvanizing Line For Steel	Type:	Continuous
Process:	Hot Dip	Material:	Steel Metal Ss Cs
Componet:	Entry Looper	Capacity:	250,000t/year
High Light:	automatic galvanizer machine , automatic galvanizing line , galvanizing line steel

Structural Steel Hot-Dip Galvanizing Line

Our structural steel hot-dip galvanizing line is developed on the basis of the existing advanced technologies for the hot-dip

galvanization in industries like electricity transmission, transportation, telecommunication, and so on. As a piece of structural steel galvanizing equipment, it can galvanize a variety of structural steel parts, such as transmission tower, microwave tower, utility pole, lighting mast, road side fence, sign post, and so on.

This structural steel hot-dip galvanizing line is designed in accordance with related domestic and international standards,

meeting all your requirements for the process flow, production capacity and techniques. As a kind of eco-friendly and energy saving galvanizing equipment, it can maintain a good production environment, reliable production performance, and gives long service life.

In addition, the structural steel hot-dip galvanizing line has many other highlights, including immersion heated ceramic

galvanizing kettle, enclosed acidic rinsing, enclosed galvanization, flux regeneration, bio-degreasing technique, and some other environmental friendly technical techniques.

Material	Structural steel, Q235B steel, Q345B steel
Galvanizing temperature	440℃~470℃
Zinc solution components	Pure zinc, galfan alloy
Galvanizing kettle size	4~13m length × 1~3m height × 1~2.5m width
Energy	Natural gas, liquefied petroleum gas, electricity
Coating standards	ISO1461: 2009(E), GB-T13912-2002

Process flow

Workpiece preparation – alkaline degreasing (bio-degreasing) – water rinsing – acid pickling – water rising – flux solution

–drying – hot-dip galvanizing – water cooling – passivation – inspection – finishing

Main technique and machine

Enclosed pretreatment, bio-degreasing, acidic mist cleaning equipment, drying furnace driven by the waste heat, enclosed

galvanizing furnace with immersion ceramic galvanizing kettle, dust collecting bag, waste acid recovery equipment, flux

regeneration Equipment feature The pretreatment bath comes with steel structural frame and internal PPH plate lining. Thus the anticorrosive performance and high strength can be both achieved. A steam heat exchanger or PTFE electric heating device is available for the degreasing bath and flux solution bath.

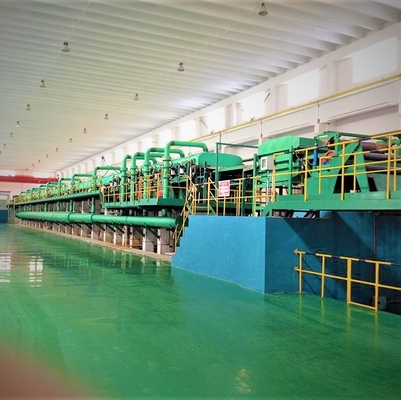

Automatic Hot Dip Galvanizing Steel Strip Production Line Galvanizer Machine 0

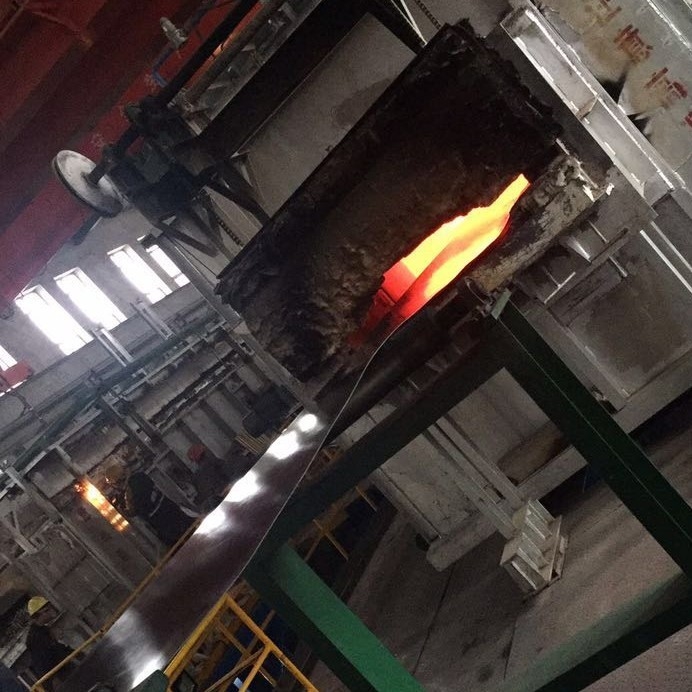

Automatic Hot Dip Galvanizing Steel Strip Production Line Galvanizer Machine 1
