Continuous Galvalume Line Process 600-1250mm

Large Image : Continuous Galvalume Line Process 600-1250mm

Product Details:

Place of Origin:	China
Brand Name:	JJRS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD$1,000,000~USD10,000,000
Packaging Details:	Wooden box;
Delivery Time:	7-10 months
Payment Terms:	T/T, L/C
Supply Ability:	1-10set/year

Contact Now

Continuous Galvalume Line Process 600-1250mm

Description

Application:	Building Material	Material:	Hot Rolled Coil, Cold Rolled Coil
Width:	650mm-1300mm	Thickness:	0.3mm-2.5mm
Zinc Coating:	30-300g/m2	Name:	Steel Strip Continuous Process Galvanizing Line (metal Ss)
Keyword:	Steel Continuous Galvanizing Line	Type:	Continuous
Process:	Hot Dip	Material:	Steel Metal Ss Cs
Componet:	Entry Looper	Capacity:	250,000t/year
High Light:	Continuous Galvalume Line , Galvalume Line Process , galv line

90,000TPY hot dip galvanizing/galvalume line 0.23~0.8mm*600~1250mm (metal ss)

Product Overview

90,000TPY continuous hot dip galvanizing line

This line is a continuous hot dip galvanizing & galvalume combined line for cold rolled strip with the function and main

equipments of degreasing, annealing, galvanizing (GI+GL), skin pass mill (optional), tension leveler, passivation/antifinger

print, electrostatic oiling (optional) and so on. It has the capacity of 90,000 tons per year; the raw material is cold rolled

hard strip SPCC; the spec is 600-1250mm×0.10-0.80mm. The designed processing speed is Max. 140mpm. Quality of the products accord

with the standard of JIS G 3302; Total length of the line is about 128m.

FEATURES AT A GLANCE

1. The line is designed to be able to process cold rolled strip with annual capacity of 90,000 tons (based on working time 7200

hours/year).

2. The spec is 600-1250mm×0.230-0.80mm. The designed processing speed is Max. 140mpm.

We provide two kinds of technologiesof hot dip galvanizing (galvalume) lines: "United States Steel Corp"and independently researched and developed “JJRS-Sendzimir” .

Name	Steel strip continuous process galvanizing line (metal ss)
Application	Building Material
Width	600mm-1350mm
Thickness	0.12mm-0.8mm
Capacity	250,000t/year
Zinc Coating	30-300g/m2

Component

entry looper etc.

Keyword	steel Continuous Galvanizing Line
Type	Continuous
Process	Hot dip
Coil Material	steel metal ss cs
Material	Hot rolled coil, cold rolled coil

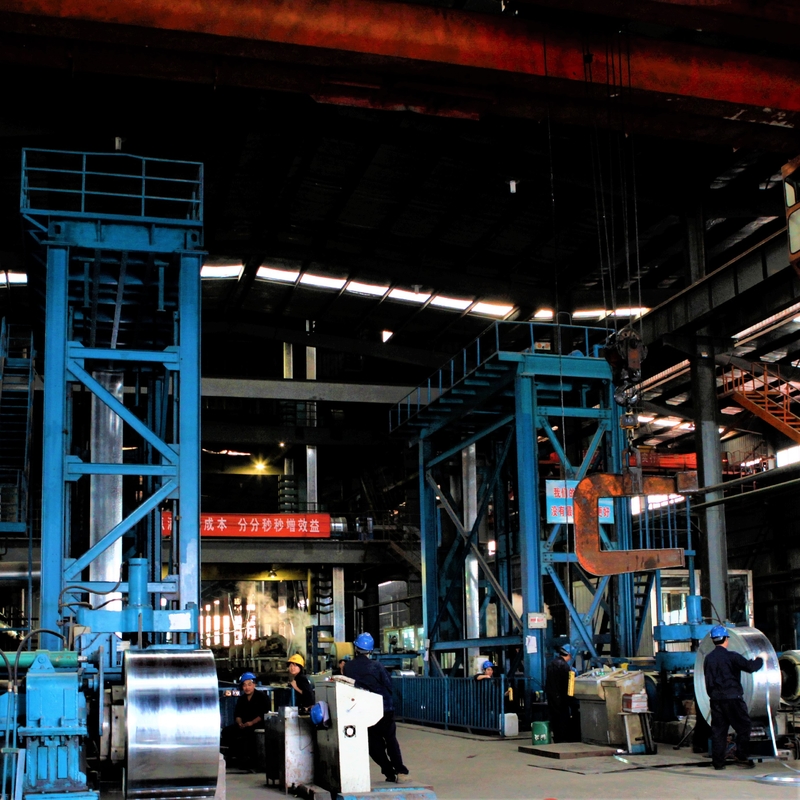

Continuous Galvalume Line Process 600-1250mm 0

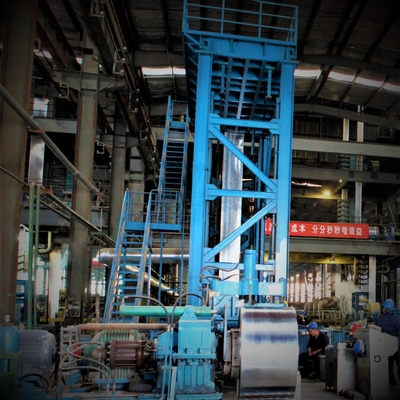

Continuous Galvalume Line Process 600-1250mm 2
