Product Details:
|
| Application: | Building Material, Home Appliances Panel, Automobile Panel, Can Material, Cover Material | Material: | Steel Metal |
|---|---|---|---|
| Width: | 250mm~1250mm | Thickness: | 1.8~2.5mm |
| Name: | Steel Strip Color Coating Line | Keyword: | Steel Strip Color Coating |
| Type: | Continuous | Process: | Hot Dip |
| Capacity: | 150,000ton/year | ||
| High Light: | printing Aluminum Coil Coating Line,Aluminum Coil Coating Line 1.8mm,aluminium coil coating printing line |
||

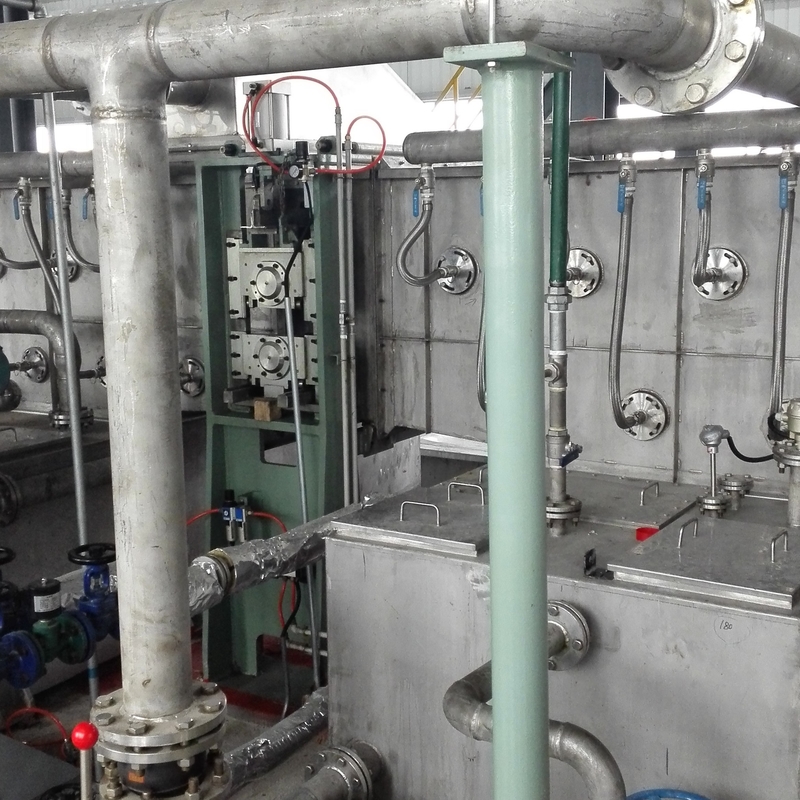

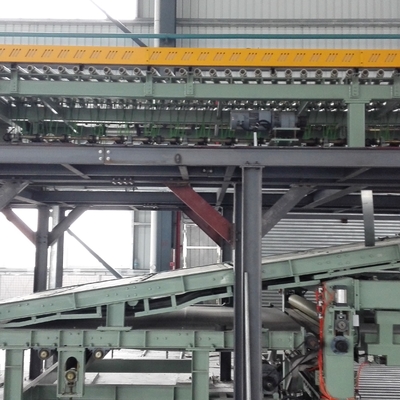

Aluminum Coil Color Coating Machine Production Line
with centering machine, roller leveler, etc
JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.
JJRS assembles excellent technology research team, high qualified management personnel, perfect management system and powerful engineering design and complete project capability. As an integrated solution provider, we are willing to provide iron and steel enterprises of all over the world with highest quality products and services, from general engineering contracting, integrated production lines, to single equipment, even components and spare parts.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |
| Material | galvanized steel strip or common steel steel strip |
| Line speed | whole line speed 40-150m/min |
| End product weight | 3,500-15,000kg/coil |
| Outer Dia. of coil | φ900-1,800mm |
| Inner Dia. of coil | φ508/φ610mm |
| Thickness of steel strip | 0.2-1.2mm |
| Width of steel strip | 600-1,250mm |
| Energy | produce gas/natural gas/blast furnace gas,steam and electricity |
