Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm

Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm
Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm

Large Image :  Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm

Product Details:
Place of Origin: China
Brand Name: JJRS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$1,000,000~USD10,000,000
Packaging Details: Wooden box;
Delivery Time: 7-10 months
Payment Terms: T/T, L/C
Supply Ability: 1-10set/year

Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm

Description
Application: Building Material Material: Hot Rolled Coil, Cold Rolled Coil
Width: 400mm-850mm Thickness: 1.25mm-1.8mm
Zinc Coating: 30-300g/m2 Name: Steel Strip CGL Continuous Galvanizing Line 1.25~1.8mm*400~850mm (metal Ss)
Keyword: Steel Continuous Galvanizing Line Type: Continuous
Process: Hot Dip Material: Steel Metal Ss Cs
Componet: Entry Looper Capacity: 250,000t/year
High Light:

Continuous Hot Galvanizing Line

,

Hot Galvanizing Line Steel

,

Hot Steel Galvanizing Line

Steel strip CGL continuous galvanizing line

1.25~1.8mm*400~850mm (metal ss)

CGL - Continuous Galvanizing Line The purpose of the continuous galvanizing line (CGL) is to apply a coating of zinc or zinc/aluminium onto the surface of steel strip to improve corrosion resistance. Galvannealing is optionally performed to alloy the coating into the steel substrate.
Thin strip at the CGL may spend only 10 seconds in the reducing zones, while heavier gauges at the CGL may take a couple of minutes to reach the necessary temperature. The. steel is heated to temperatures typically in the range of 1300° to 1500° Fahrenheit.


For good anticorrosion performance, galvanized steel sheet is vastly applied into the industries of home appliance, decoration, advertisement, and civil construction, etc. Particularly, the home appliance industry (outer shell of air conditioner, outer plate of refrigerator, outer shell of washing machine, computer, and microwave oven, etc) and color coated plate has large demands on galvanized plate.



The continuous hot-dip galvanized line is manufactured using cold-rolled steel coil which is coated with a thin layer of high grade zinc on both sides by hot dip zinc coating process. It resists corrosion by supplying barrier and cathodic protection, as well as through the development of the zinc patina. These three levels of corrosion protection provide galvanized steel with maintenance-free longevity for decades. JJRS not only manufacture and install equipment, but also carry out professional technical innovation to the galvanizing plants.





Name  Steel strip continuous process galvanizing line  (metal ss)
Application  Building Material
Width  600mm-1350mm
Thickness  0.12mm-0.8mm
Capacity  250,000t/year
Zinc Coating

 30-300g/m2



Component  entry looper etc.



Keyword  steel Continuous Galvanizing Line
Type  Continuous
Process  Hot dip
Coil Material  steel metal ss cs
Material  Hot rolled coil, cold rolled coil

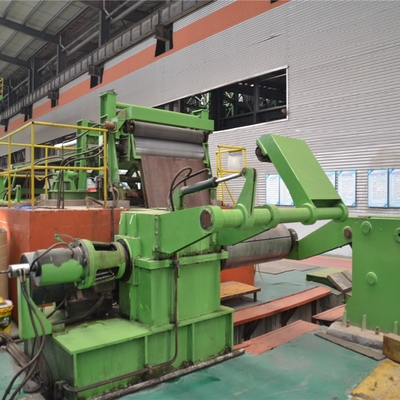

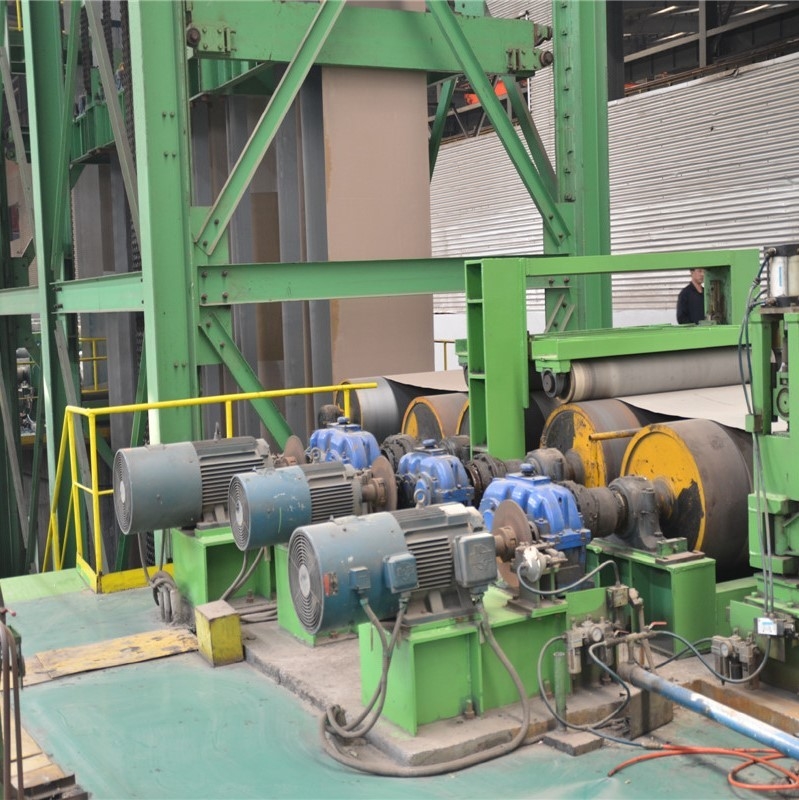

Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm 0Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm 1































Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm 2Continuous Hot Galvanizing Line Steel 1.25-1.8mm 400-850mm 3
