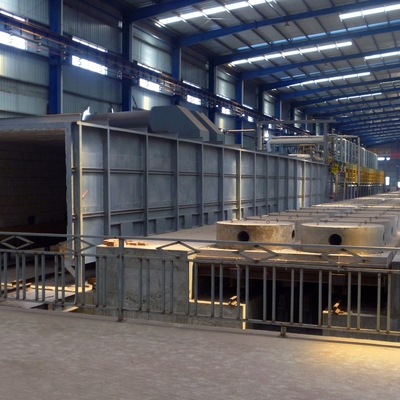

Strip Continuous Annealing Pickling Line AP Line

Strip Continuous Annealing Pickling Line AP Line
Strip Continuous Annealing Pickling Line AP Line Strip Continuous Annealing Pickling Line AP Line

Large Image :  Strip Continuous Annealing Pickling Line AP Line

Product Details:
Brand Name: JJRS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD$1,000,000~USD10,000,000
Packaging Details: wooden box; plastic package
Delivery Time: 7~10 months
Supply Ability: 10-12 set/year

Strip Continuous Annealing Pickling Line AP Line

Description
Material: Cold Rolling Low Carbon Steel Steel Type: Q195,Q215,Q235,SPCC,SPCD
Thickness: 0.2~1.2mm Width: 800~1250mm
Weight Of Coil: Max.25t Treatment After Annealing: Finishing, Leveling, Oiling
Annual Output: 150,000t/y Processing Speed: 120m/min
Application: Construction, Name: Annealing Pickling Line With Open Flame Furnace
High Light:

strip Continuous Annealing Pickling Line

,

Annealing Pickling Line AP

,

Continuous Annealing Pickling Lines

Basic on the Sendzimir tech of Annealing Pickling Line with open flame furnace





JJRS, Established in 2011 at Beijing in China, is leading Exporter, Manufacturer, Supplier of Furnace Manufacturers in China. JJRS is one of verified and trusted sellers of listed products. With their extensive experience of supplying and trading Continuous Annealing Furnace, JJRS has made a reputed name for themselves in the market with high quality Continuous Annealing Furnace etc.
Focusing on a customer centric approach, JJRS has a pan-India presence and caters to a huge consumer base throughout the country.



Technical specifications of annealing furnace
This heat treatment process has the advantages of high quality, high efficiency and low consumption. It is equipped with NOF double cross limiting control, detection of combustion atmosphere during operating, pulse heating and double cross limiting automatic control heating of radiant tube heating section, furnace pressure closed loop and furnace temperature closed loop, which can ensure stability of furnace combustion state, furnace atmosphere and safe operation.

The horizontal continuous annealing furnace is composed of the following sections: inlet sealing chamber, open fire heating furnace( including preheating section), middle sealing chamber, radiant tube reduction furnace(including soaking zone), forced cooling section, baffle, strip temperature equalizing section, furnace nose (including hot tensioning chamber). The total length from the inlet chamber to the zinc pot is about 151 meters.

After the strip passes through the hot tensioning roll, the tension inside and outside the furnace is cut off, which can improve the tension outside the furnace and is beneficial to the control of the coating by the subsequent air knife. The steel strip is sealed into the zinc pot by the furnace nose inserted into the zinc solution. A radiating thermometer is set in the furnace nose for detecting and controlling the temperature of the steel strip at the outlet.



Continuous Annealing Furnace Features

  • Applicable to large volume production of single variety
  • Short annealing period and high productive efficiency
  • Good temperature uniformity and good surface quality of finished product
  • Complicated technology with large one-time investment
  • JJRS self-developed " JJRS-Sendzimir" technology with lots of technical patents
  • Energy cyclic utilization saves running cost and decreases annealing cost
  • Fuels applicable for wide us: Natural gas, cooled coal gas, blast-furnace gas, coke oven gas, etc.
  • Advanced furnace structure, perfect heat preservation, even and stable temperature control
  • Higher-level automation could realize automatic control, automatic detection, safety protetion, automatic report and long-range control etc.

Strip Continuous Annealing Pickling Line AP Line 0


Technical Parameter
Heated steel type cold rolled and hot rolled common carbon steel;
Fuel natural gas (lower calorific value ≥8430×4.18kJ/Nm3)
Steel strip size maximum width: 520mm; Thickness: 0.7-2.9mm;
Maximum TV value 120mm·m/min
Furnace temperature in heating section 1050 ~ 1180℃;
Maximum output per hour 29.39t/h

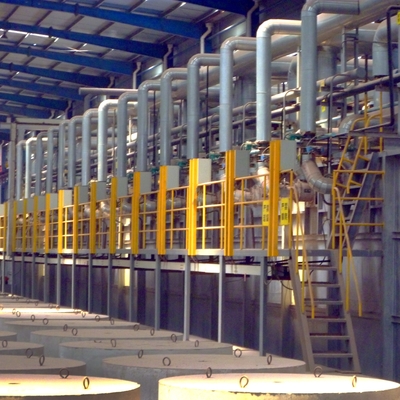

Strip Continuous Annealing Pickling Line AP Line 1Strip Continuous Annealing Pickling Line AP Line 2.



Strip Continuous Annealing Pickling Line AP Line 0
