Product Details:
|
| Capacity: | 200,000~400,000tons Annually | Raw Material: | Hot Rolling Carbon Structure Steel, High Qulity Carbon Structure Steel And Low Alloy Steel Coil, Silicon Steel |
|---|---|---|---|
| Thickness Of Steel Strip: | 0.8~3.2mm | Width Of Steel Strip: | 300~850mm |
| Processing Speed: | 30~180m/min | Coil Weight: | Max.25tons |
| Technology: | Push-pull Shallow Trough Turbulence Acid Pickling | Energy: | Water, Electricity, Steam |
| Name: | Pickling Line Of Steel Strip With Push-Pull Type (large Capacity) | ||
| High Light: | Semi Continuous Push Pull Pickling Lines,Push Pull Pickling Lines for Hot Rolled Strip,Push Pull Strip Pickling Line |
||

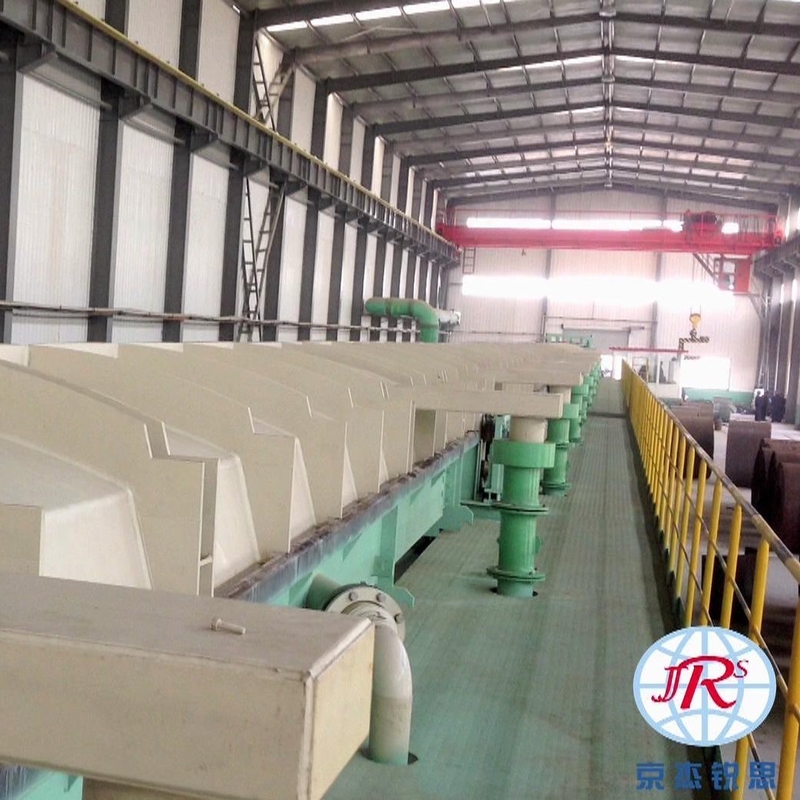

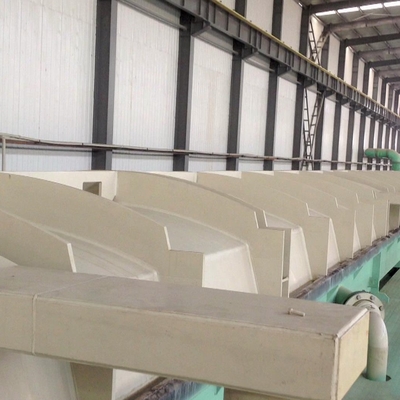

Pickling line of Steel Strip with Push-Pull type (large capacity)
JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.
JJRS assembles excellent technology research team, high qualified management personnel, perfect management system and powerful engineering design and complete project capability. As an integrated solution provider, we are willing to provide iron and steel enterprises of all over the world with highest quality products and services, from general engineering contracting, integrated production lines, to single equipment, even components and spare parts.
Guaranteed Items and guaranteed value
|
Cutting capacity of end shearer |
2.0mmT×1100mmW |
σb=610N/mm2 Strength limit: σs≤610N/mm2 |
|
| 3.0mmT×1250W |
The assessment is carried out simultaneously with the assessment of the cutting ability of the crop shear. |
||
|
It can be cut off smoothly within 10 seconds. |
|||
|
Telescope |
Accuracy: ≤±3mm |
σs≤500MPa Yield strength: σs≤500MPa |
Number of test steel coils: 3 coils for each size continuously. |
|
Adjacent layer: ≤±1mm |
Coil size |
|
|
| 2.0mm×800mm×12 |
The coil to be tested is in the same condition as the coil when the line speed is tested. |
||
| 2.75mm×1100mm×18t | |||
| 3.0mm×1250mm×23t | |||
|
Pickling quality |
No underpickling and overpickling: The surface is smooth and clean without obvious color spots. |
Same as above |
Same as above(Visual inspection) |
