Product Details:
|
| Capacity: | 600,000~800,000 Tons Annually | Raw Material: | Hot Rolling Carbon Structure Steel, High Qulity Carbon Structure Steel And Low Alloy Steel Coil, Silicon Steel |
|---|---|---|---|
| Thickness Of Steel Strip: | 4.0mm | Width Of Steel Strip: | 1,350mm |
| Processing Speed: | 30~180m/min | Coil Weight: | Max.25tons |
| Technology: | Push-pull Shallow Trough Turbulence Acid Pickling | Energy: | Water, Electricity, Steam |
| Name: | Pickling Line Of Steel Strip With Push-Pull Type (large Capacity) | ||
| High Light: | Continuous Push Pull Pickling Line,Push Pull Pickling Line Metal p,Cgl Pickling machine |
||

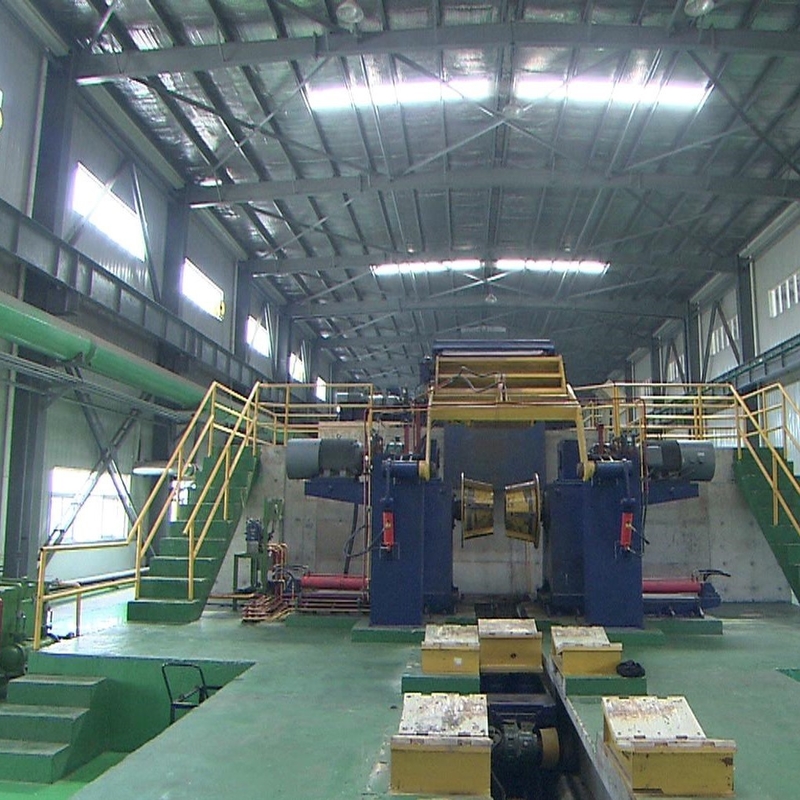

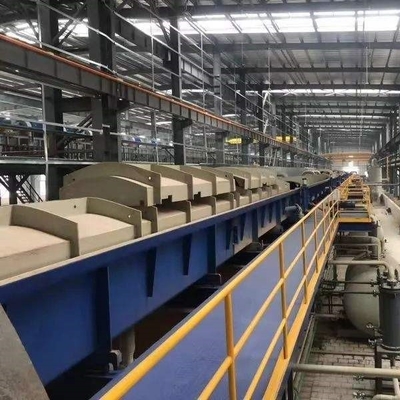

Pickling line of Steel Strip with Push-Pull type (large capacity)
Guaranteed Items and guaranteed value
| Function assessment: carbon steel | ||||||
|
|
||||||
|
Residual chlorine ion on the strip surface |
≤5mg/m2(Single side ) |
Same as above |
Number of test steel coils: 3 coils for each sizeThe coil to be tested is in the same condition as the coil when the line speed is tested. |
|
Residue content on the strip surface |
≤50mg/m2(Single side) |
σs≤500MPa Yield strength: σs≤500MPa |
Number of test steel coils: 3 coils for each size continuously The coil to be tested is in the same condition as the coil when the line speed is tested. Chemical analysis |
|
Surface quality |
No crack edge, rolled edge, scratch on strip surface |
σs≤500MPa Yield strength: σs≤500MPa |
Visual inspection |
|
Scratches refer to scratches caused on this production line. |
|||
|
Coiling quality |
During coiling coils with neat edge, adjacent lap≤1mm |
On EPC side, the first five and last three laps of coil are excluded. |
|
|
Environment protection emission |
Acid mist emission chimney HCL emission value ≤20mg/Nm³
|
During normal production |
Buyer's lab or third party |
