Product Details:
|
| Capacity: | 800,000tons Annually | Raw Material: | Hot Rolling Carbon Structure Steel, High Qulity Carbon Structure Steel And Low Alloy Steel Coil, Silicon Steel |
|---|---|---|---|
| Thickness Of Steel Strip: | 3.0~4.5mm | Width Of Steel Strip: | 450~1250mm |
| Processing Speed: | 30~180m/min | Coil Weight: | Max.25tons |
| Technology: | Push-pull Shallow Trough Turbulence Acid Pickling | Energy: | Water, Electricity, Steam |
| Name: | Steel Strip Pickling Line With Push-Pull Type Large Capacity | ||
| High Light: | steel strip Push Pull Pickling Line,Push Pull Pickling Line large capacity,180m/min pickling equipment |
||

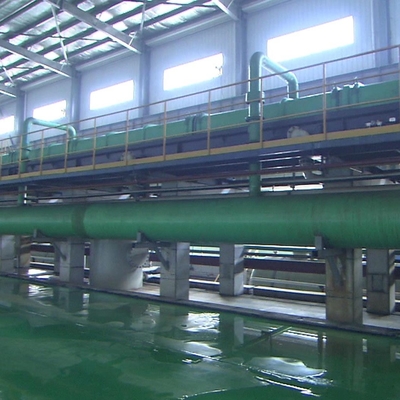

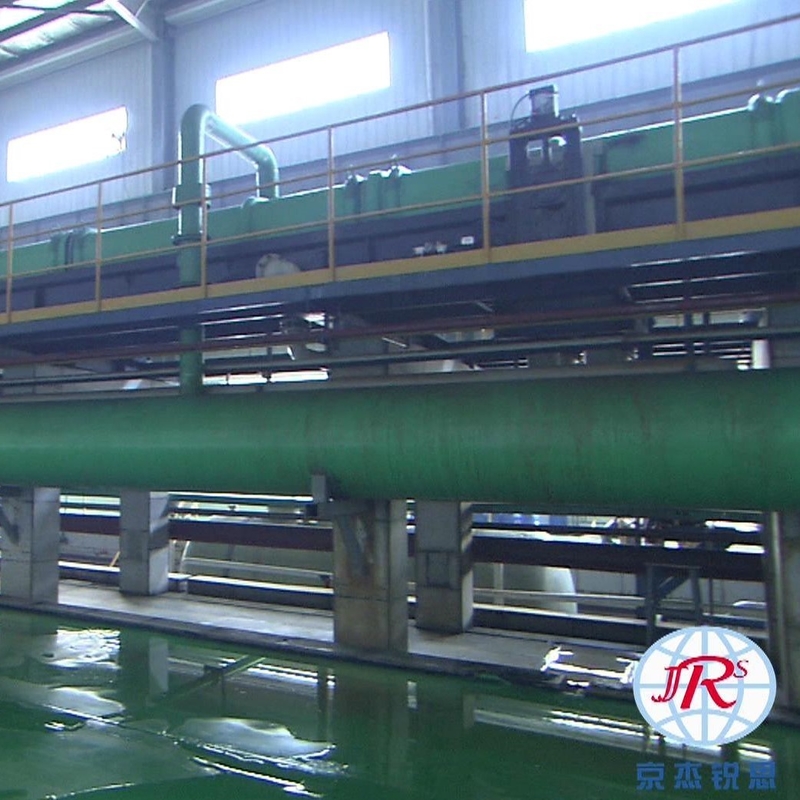

steel strip pickling line with Push-Pull type large capacity
Guaranteed Items and guaranteed value
|
Function assessment: carbon steel |
||||||
|
Guaranteed Items |
Guaranteed value |
Definition and conditions of guaranteed value |
Assessment methods and c |
|||
|
f test steel coils: 3 coils for each size continuously |
||||||
| (mm) | (m/min) |
Coil size |
Supply coils |
|||
| 2-3.5 |
No visible loosening of coil |
|||||
| 2.0mm×1000mm | 180 | 2.0mm×1000mm×20t |
No serious side waves on both sides |
|||
| 3.0mm×1100mm | 180 | 3.0mm×1100mm×20t | ||||
| 3.5mm×1250mm | 140 | 3.5mm×1250mm×25t | ||||
|
Tension |
(THmm×WDmm) |
Pay-off reel (ton) |
Coiler (ton) |
Number of test steel coils: 3 coils for each size continuously |
||
| 2×1250 | 1.2 | 4.8 |
σs≤500MPa Yield strength: σs≤500MPa |
Supply coils |
||
| 3.5×1250 | 2.7 | 5.2 |
The assessment conditions are the same as those of line speed. |
|||
