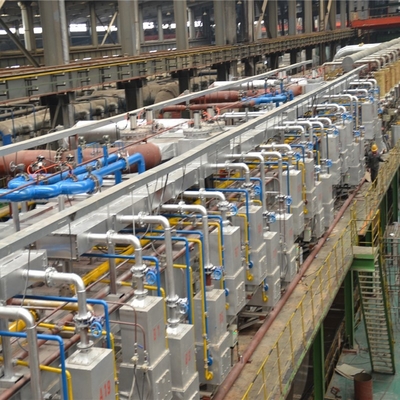

SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY

SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY
SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY

Large Image :  SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY

Product Details:
Brand Name: JJRS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD$1,000,000~USD10,000,000
Packaging Details: wooden box; plastic package
Delivery Time: 7~10 months
Supply Ability: 10-12 set/year

SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY

Description
Material: Cold Rolling Low Carbon Steel Steel Type: Q195,Q215,Q235,SPCC,SPCD
Thickness: 0.2~3.2mm Width: 450~650mm
Weight Of Coil: Max.25t Treatment After Annealing: Finishing, Leveling, Oiling
Annual Output: 180,000t/y Processing Speed: 120m/min
Application: Construction, Name: Annealing Pickling Line With Open Flame Furnace
High Light:

SS Annealing Pickling Line 180000TPY

,

Annealing Pickling Lines 180000TPY

,

180000TPY Stainless Steel Annealing Pickling

Annealing Pickling Line with open flame furnace 0.2~3.2mm*450~650mm 180,000TPY



JJRS, Established in 2011 at Beijing in China, is leading Exporter, Manufacturer, Supplier of Furnace Manufacturers in China. JJRS is one of verified and trusted sellers of listed products. With their extensive experience of supplying and trading Continuous Annealing Furnace, JJRS has made a reputed name for themselves in the market with high quality Continuous Annealing Furnace etc.
Focusing on a customer centric approach, JJRS has a pan-India presence and caters to a huge consumer base throughout the country.



Basic dimensions Line layout: two furnaces length * width: ~ 80000 * 18000mm
Furnace width: 2700mm
combustion system Each furnace has 9 flow control zones
On / off control system
burner Side burner, 25*2 sets
Total 50 sets, 15700 kw
trailer Length * width 2300 * 2300mm
Quantity in furnace, 24*2
Charge temperature Low temperature loading: 20 ℃ (surrounding environment)
heat treatment temperature 680-720 ° C
Rated output 35t/h (two furnaces)
Unit consumption 1.0GJ/t (28 m ³/ t)
Top gas load 1500 nm3/h (two furnaces)
Maximum air consumption 15000 nm3/h (two furnaces)
Air preheating temperature ~ 250 ° C
Maximum exhaust gas volume 3.9 nm3/sec (two furnaces)
Furnace shaft Height: 30m outlet diameter: Ф 1.2m
Control system L0, L1
Tunnel annealing furnace





Continuous Annealing Furnace Features

  • Applicable to large volume production of single variety
  • Short annealing period and high productive efficiency
  • Good temperature uniformity and good surface quality of finished product
  • Complicated technology with large one-time investment
  • JJRS self-developed " JJRS-Sendzimir" technology with lots of technical patents
  • Energy cyclic utilization saves running cost and decreases annealing cost
  • Fuels applicable for wide us: Natural gas, cooled coal gas, blast-furnace gas, coke oven gas, etc.
  • Advanced furnace structure, perfect heat preservation, even and stable temperature control
  • Higher-level automation could realize automatic control, automatic detection, safety protetion, automatic report and long-range control etc.

SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY 0


Basic Parameters
Air preheating temperature ~ 250 ° C
Maximum exhaust gas volume 3.9 nm3/sec (two furnaces)
Furnace shaft Height 30m outlet diameter: Ф 1.2m
Control system L0, L1
Unit consumption 1.0GJ/t (28 m ³/ t)



SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY 1SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY 2.



Material Cold rolling low carbon steel
Steel type Q195, Q215, Q235, SPCC, SPCD
Thickness of steel strip 0.2~3.2mm
Width of steel strip 450~650mm
Inner Dia. of coil 508mm/610mm
Outer Dia. of coil 1000mm-2100mm
Weight of coil Max.25t
Product grade CQ,DQ
Treatment after annealing finishing, leveling, oiling
Annual output 180,000t/y
Processing speed 120m/min





SS Annealing Pickling Line With Open Flame Furnace 0.2MM 3.2mm 450-650mm 180000TPY 0
