JJRS Steel Strip Color Coating Equipment Hot Dip Galvanizing Machine

Excellent Steel Strip Color Coating Line ( Coating, laminating, printing, embossing etc.)

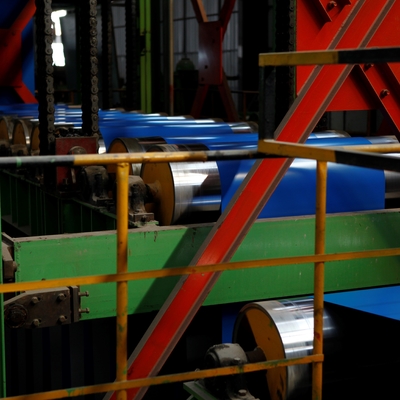

Excellent Steel Strip Color Coating Line

( Coating, laminating, printing, embossing etc.)

We have experienced commissioning team consisting of paint technologist, coater operation expert and thermal system integrators to guide and establish operation parameters and train your people for smooth running of plant.

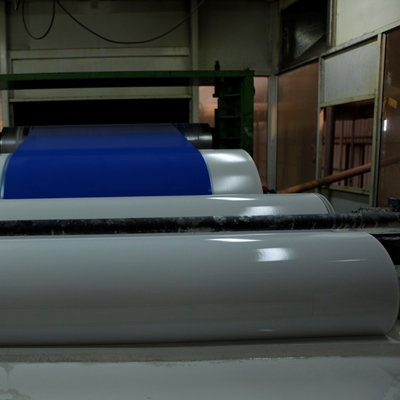

Our Roll Coaters are tailored to specific customer’s demanding needs that meet the complete spectrum of coating applications for various types of paints, coating thickness, strip widths and thickness as well as line speeds. Our precision slide coaters shall be designed for manual or automatic coating thickness control system that increase accuracy and productivity, while improving coating weight consistency.

We offer 9 Coater Head Layout with printing feature suitable for continuous non stop line operation. Change in Primer paints, Finish Coat paints and Printing pattern shall be achieved without Line stoppage and use of dummy coil.

Manual-acting bridge crane puts raw coil on entry skid before uncoiller. Then shear packing belt of coil. Coil would be picked up by loading trolley and move to coiling block of uncoiler. Height of coil would be adjusted manually to align its inner diameter core to core of uncoiler block. At the moment, uncoiler block is drawing down to min value. Move loading trolley slowly to send coil to center line of uncoiler. This moment, the coiling block rolls up to make coil connect to it tightly. Uncoiler compression roller then come down, loading trolley also comes down and back below uncoiler skid. —Above is load material process of entry section.

Process Flow

Loading trolley I# & II# Uncoiler I# & II# Uncoiler Pinch Roll I# & II# Shear I# & II# Joint Pinch Roll Riveter Flattener Tension Bridle roll I#(S-roller) Entry looper Centering machine I# Tension Bridle roll II# (S-roller) Pre-degreasing Squeezer I# Degreasing Rolling brush machine I# Squeezer II# & III# Washing I# Squeezer IV# Washing II# Squeezer V# Washing III# Squeezer VI# & VII Hot air blowing service I# Centering machine II# Chemical Coating Water vapor drying furnace Forced Air Cooling I# Tension Bridle roll III# (S-roller) Centering machine III# Prime painting roller coater Prime paint leveling Prime paint curing furnace Forced Air Cooling II# Forced water cooling for prime paint Centering machine IV# Hot air blowing service II# Tension Bridle roll IV# (S-roller) Centering machine V# Finish painting roller coater Finish paint leveling Finish paint curing furnace Forced Air Cooling III# Forced water cooling for Finish paint Centering machine VI# Hot air blowing service III# Tension Bridle roll V# (S-rollers) Cold Laminator unit Exit looper Tension Bridle roll VI#(S-roller) Pinch roll shear III# Exit pinch roll Servo coiler(with belt wrapper) Unloading trolley
