Product Details:
|
| Application: | Building Material, Home Appliances Panel, Automobile Panel, Can Material, Cover Material | Material: | Hot Rolled Coil, Cold Rlled Coil |
|---|---|---|---|
| Width: | 500mm~130mm | Thickness: | 0.15mm~6mm |
| Zinc Coating: | 30-300g/m2 | Name: | Galvalume Line |
| Keyword: | Steel Galvalume Line | Type: | Continuous |
| Process: | Galvalume | Material: | Steel Metal |
| Capacity: | 200,000t/year | ||
| High Light: | Coils continuous hot dip galvanizing plant,continuous hot dip galvanizing plant 500mm,continuous galvalume line |
||
JJRS owns a stable user group both at home and abroad; all the contracted engineering projects are highly praised by end users bringing us fruitful success and good reputation. We are promoting actively metallurgical equipments to international market, establishing good trade cooperation relationship with several multinational companies. Our products are exported to Indonesia, Uzbekistan, Russia, Southeast Asia, Middle Asia and other countries and regions.
General Specification

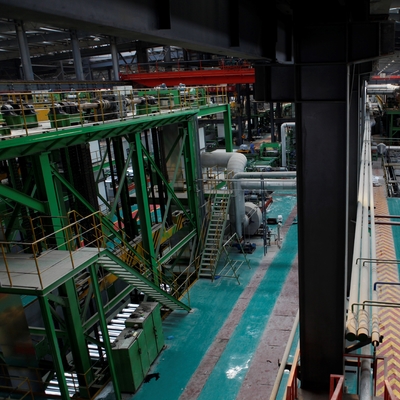

This line is the cold rolled continuous galvanizing line, with the function of heating reduction, galvanizing (reserve aluminum zinc silicon plating), skin pass, tension leveling. The designed capacity is 250,000 tons per year, the specification is 0.2-1.0×800-1250mm; the raw material is cold rolled low carbon coil, the line processing speed is Max. 180m/min (The design is according to Max. 200mpm to preserve the amount ), the Max. TV is 75. The total length of the line is about 275m. This is is Cold Rolled Strip Continuous Galvanizing Line, to take the consideration of producing Galvalume Products in the future, some of the equipment reserve according to the galvalume requirements.
Brief Introduction of 0.2~1.0mm*800~1250mm Continuous Galvalume Line

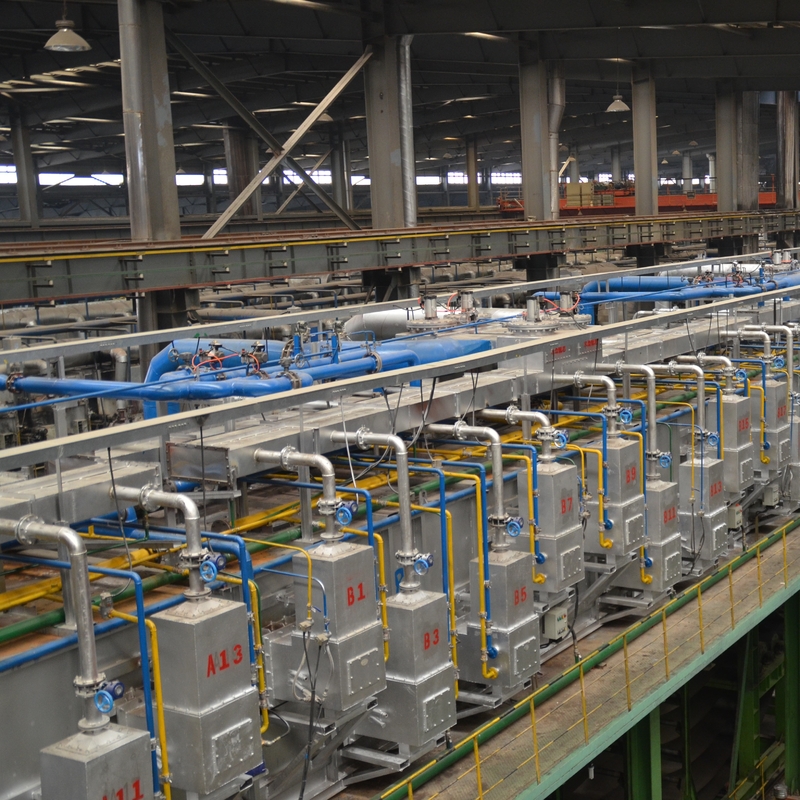

The continuous galvalume line is used to produce high quality galvalume steel sheets, it can realize the recrystallization annealing of cold rolled steel strip and deposit an equal thickness coating on the surface.
Raw material status: cold rolled coil
Steel species: SPCC, SPCD
Strip Thickness: 0.2-1.0mm
Strip Width: 800 - 12650mm
Coil Inner diameter: Φ508mm
Coil Out diameter: Φ1100-Φ2100mm
Coil Weight: 25 Tons
Machinery Performance: Yield Strength Max. 710N/mm²
| Raw material | cold rlled coil |
| Steel species | SPCC,SPCD |
| Strip Thickness | 0.2-1.0mm |
| Strip Width | 800 - 1250mm |
| capacity | 250,000t/year |
